Stair Tread Steel Grating

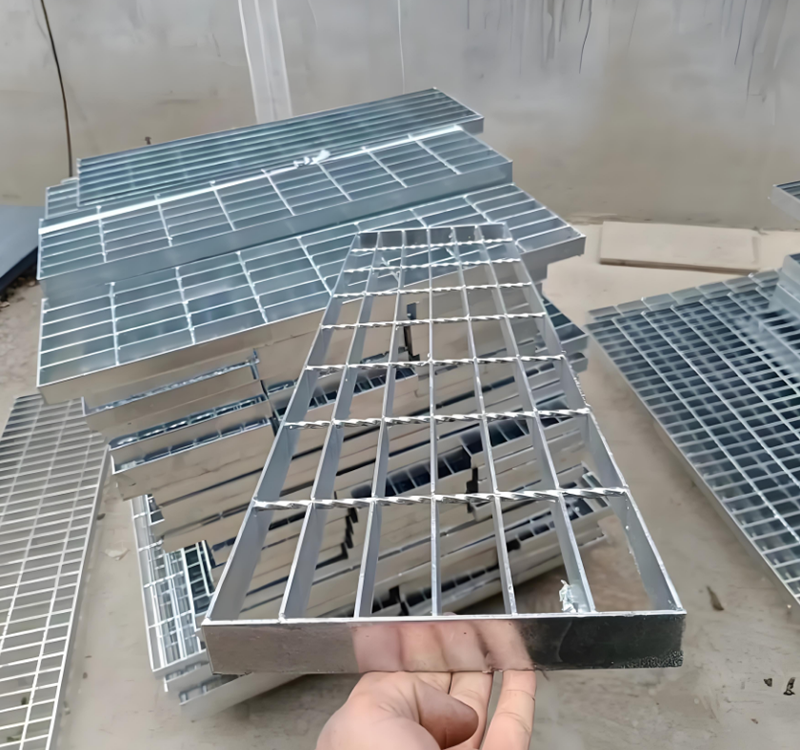

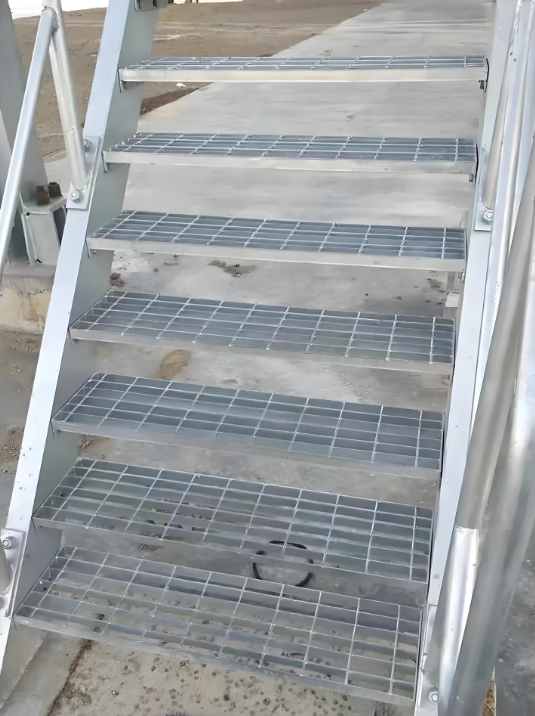

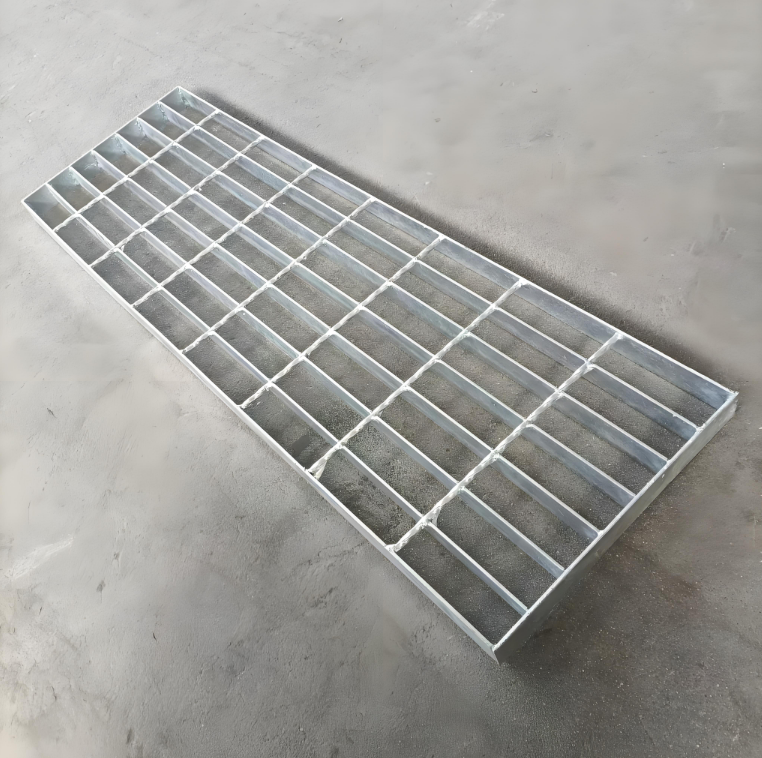

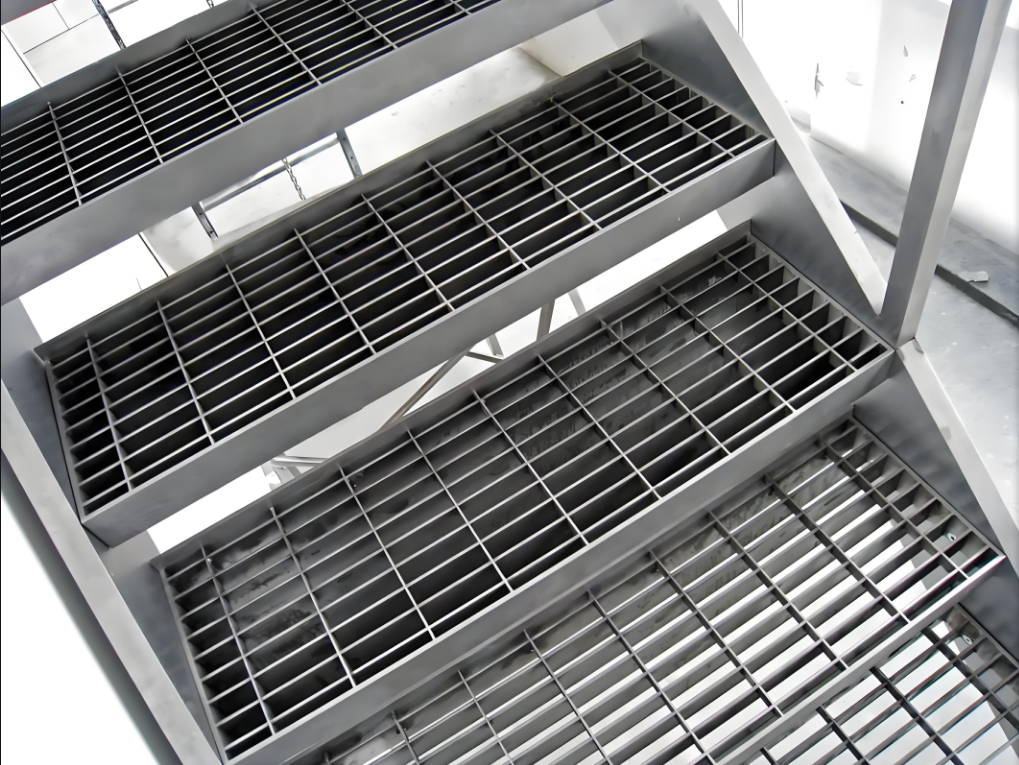

Stepped steel grating (also known as platform step plates) features a grid structure formed by cross-welding flat bars and crossbars. It is primarily used in industrial, municipal, and commercial settings for staircases, walkways, and similar applications.

Material and Structure

Material: Typically made of Q235A carbon steel or stainless steel, with a hot-dip galvanized surface treatment to enhance rust and corrosion resistance.

Welding Process: Flat bars and cross bars are joined via pressure welding, embedding, or interlocking techniques. Weld lengths ≥25mm ensure structural integrity.

Specifications and Performance

Dimensions: Standard flat bar spacing is 50/100mm, with width tolerance ±3mm and length tolerance ±3mm.

Load Capacity: Compressive strength reaches 100MPa. Excellent surface slip resistance makes it suitable for high-traffic areas.

Application Areas

Industrial Settings: Used for production line platforms, equipment rooms, storage areas, etc., with ventilation and heat dissipation functions.

Municipal Facilities: Bridge staircases, underground passageways, drainage channel covers, meeting public safety requirements.

Commercial Buildings: Shopping mall staircases, exhibition platforms, etc., combining load-bearing capacity with aesthetic appeal.
